| Model |
Function |
| 58KS |
DC signal transmitter |

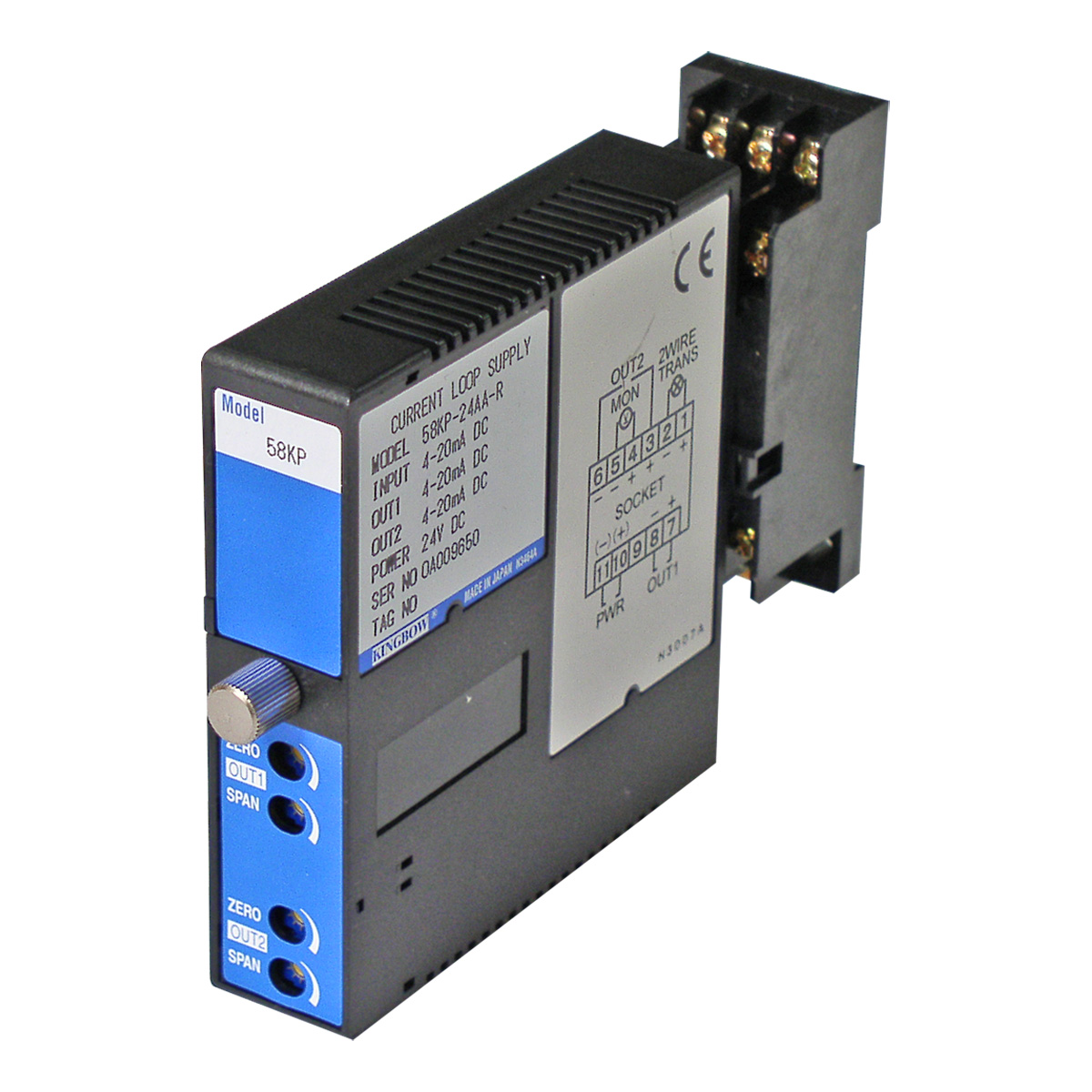

| 58KP |
Current loop supply |
| 58KC |
TC transmitter |
| 58KR |
RTD transmitter |
|
|
| Products |
58K Series |
Input |
DC:
-300- +300VDC
0- 50mA(Specify available)
RTD:
Pt100,Pt50,Pt10,Ni508.4,Cu50,Cu100
(Specify available)
T/C:
(PR),K,E,J,T,B,R,S,N
(Specify available)
Potentiometer:
Up to 10k
Ω
AC:
0-500mA(Specify available)
0-150V(Specify available)
Frequency:
10KHz |
| Input resistance |
Current: Max.1KΩ(Specify available)
Voltage: Min.10kΩ
T/C: 30 kΩ |
| Output |
DC:
-10- +12VDC(Specify available)
0 -20mA(Specify available) |
| Load resistance |
DC Current: Max.15kΩ
DC Voltage: Min.1000Ω |
| Power supply |
24VDC,11-27VDC,85-264VAC,110VDC |
| Construction |
Plug-in |
| Housing material |
Flame-resistant resin |
| Dielectric strength |
2000VAC@1minute |
| Accuracy |
± 0.075%/F.S See detail spec. data sheet |
| Operating data |
Temperature:-5- +55
℃
Humidity:0- 95%RH |
| Display |
- |
| Adjustment |
Front panel adjustments
±
5% for Zero and Span |
| Mechanical Connection |
M3 screw terminals |
| Approvals |
CE
UL |
| Mounting |
35mm DIN rail or wall surface |
| Dimensions |
W29.5
×
H89
×
D124mm |
| Weight |
200g |
|
|
